Two-Way:
Equipped with two tight-seating fittings for 1/16 inch outer diameter tubing, capable of a high pressure of up to 6000 psi (414 bar), and has a dead volume as low as 0.07 ul. Other nanoliter versions of the fittings are available; please contact us for inquiries.
Three-Way:
Equipped with three tight-seating fittings for 1/16 inch outer diameter tubing, capable of a high pressure of up to 3500 psi (241 bar), and has a dead volume as low as 0.57 ul.
Four-Way:
Equipped with four tight-seating fittings for 1/16 inch outer diameter tubing, capable of a high pressure of up to 3500 psi (241 bar). It has a dead volume as low as 0.72 ul.
| Part Number |
Material |
Type |
Internal Diameter or Inner Diameter (ID) |
Dead Volume µL |
Note: |
| U-438 |
Stainless Steel |
Two-Way Valve |
.062″ ( 1.55mm ) |
About 0 |
|
| U-322 |
Stainless Steel |
Two-Way Valve |
.020″ ( .50mm ) |
0.15 |
Compatible with VICI (Valco Instrument Company, Inc.) connectors. |
| U-412 |
Stainless Steel |
Two-Way Valve |
.020″ ( .50mm ) |
0.1 |
Compatible with Waters connectors. |
| P-742 |
PEEK |
Two-Way Valve |
.010″ ( .25mm ) |
0.07 |
|
| U-428 |
Stainless Steel |
Three-Way Valve |
.020″ ( .50mm ) |
0.57 |
|
| U-430 |
Stainless Steel |
Four-Way Valve |
.020″ ( .50mm ) |
0.72 |
|

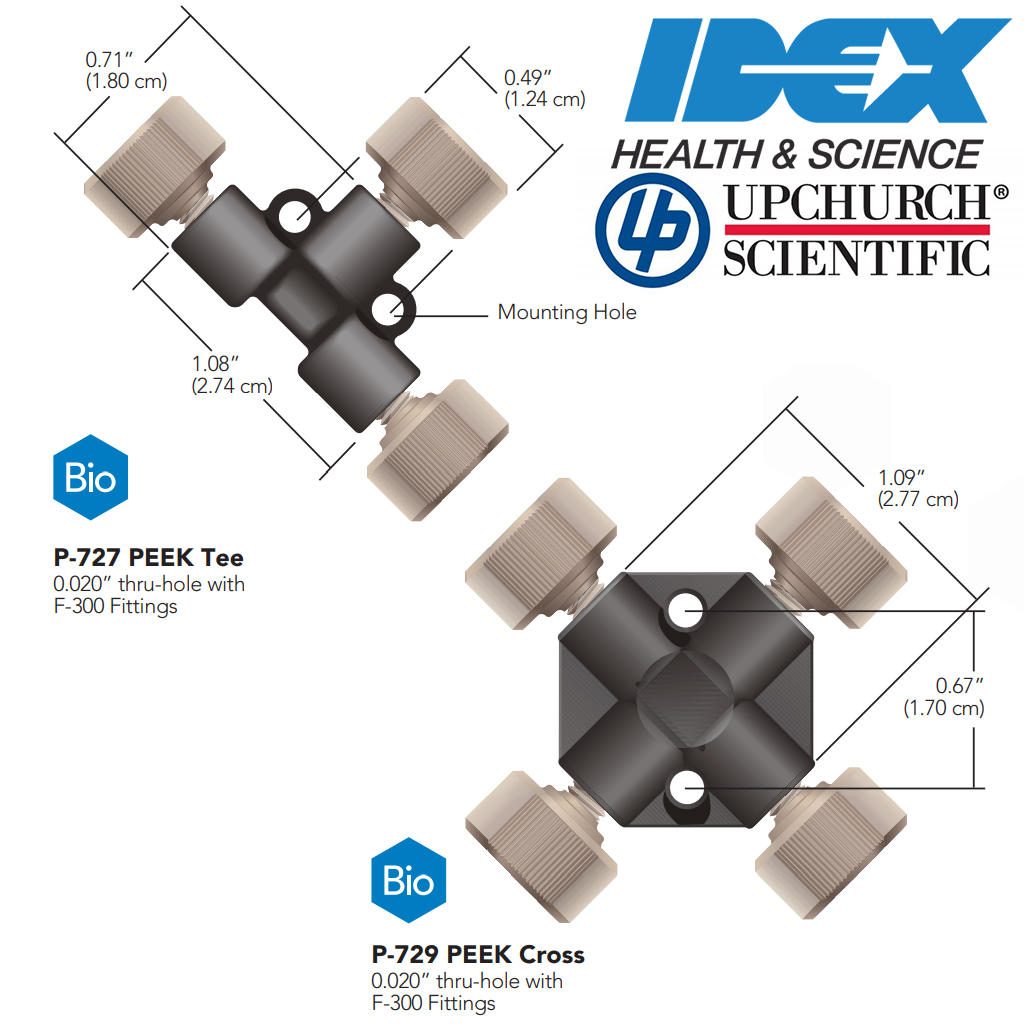

| P-727 |
PEEK |
Three-Way Valve |
.020″ ( .50mm ) |
0.57 |
|
| P-729 |
PEEK |
Four-Way Valve |
.020″ ( .50mm ) |
0.72 |
|
Other details:
- Transportation:By air if not specified.
