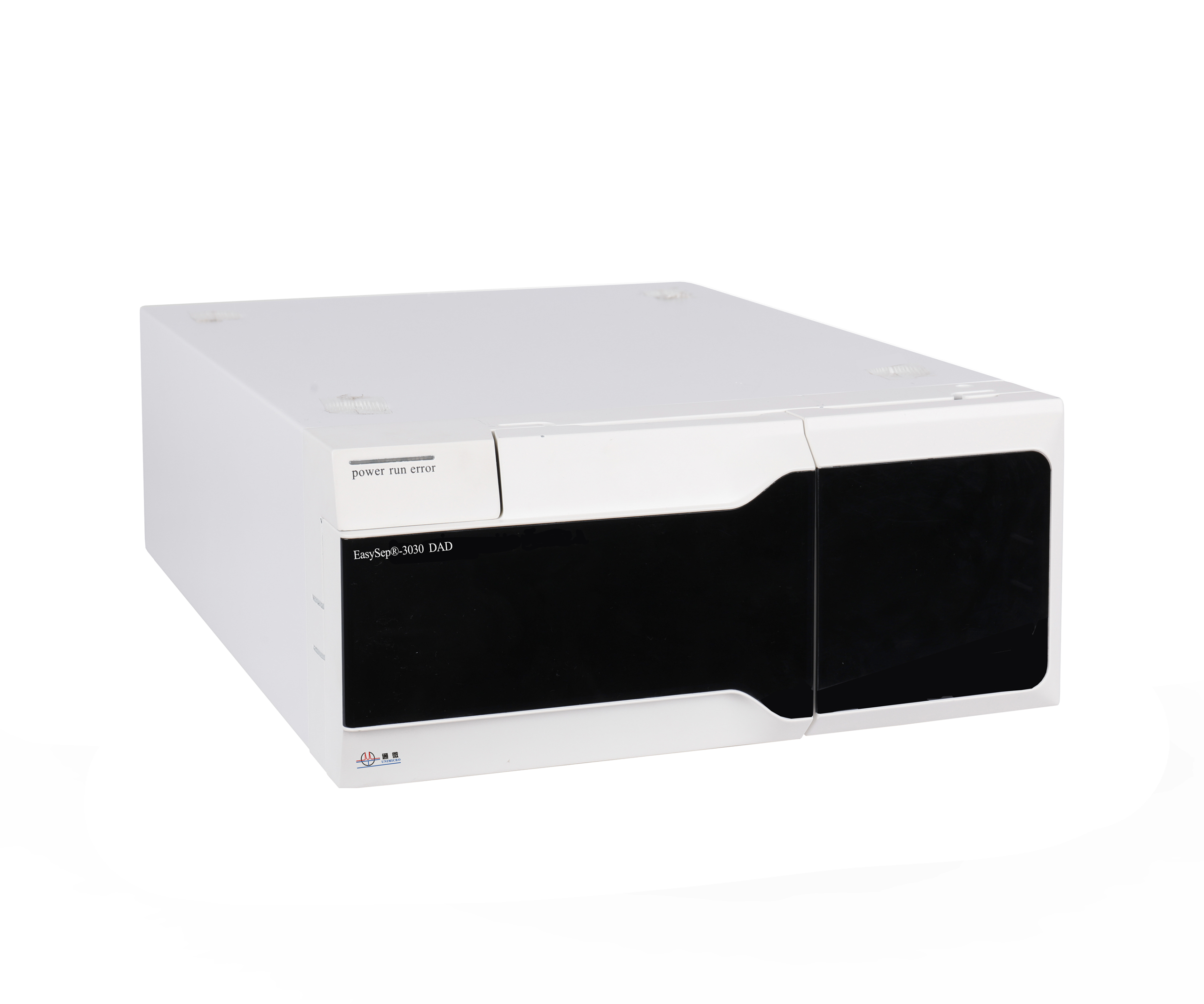

DAD Diode Array Detector

Based on diode array detection technology, it features simultaneous multi-wavelength detection, 3D full-spectrum acquisition, and peak purity calculation, with sensitivity equivalent to that of a UV detector.

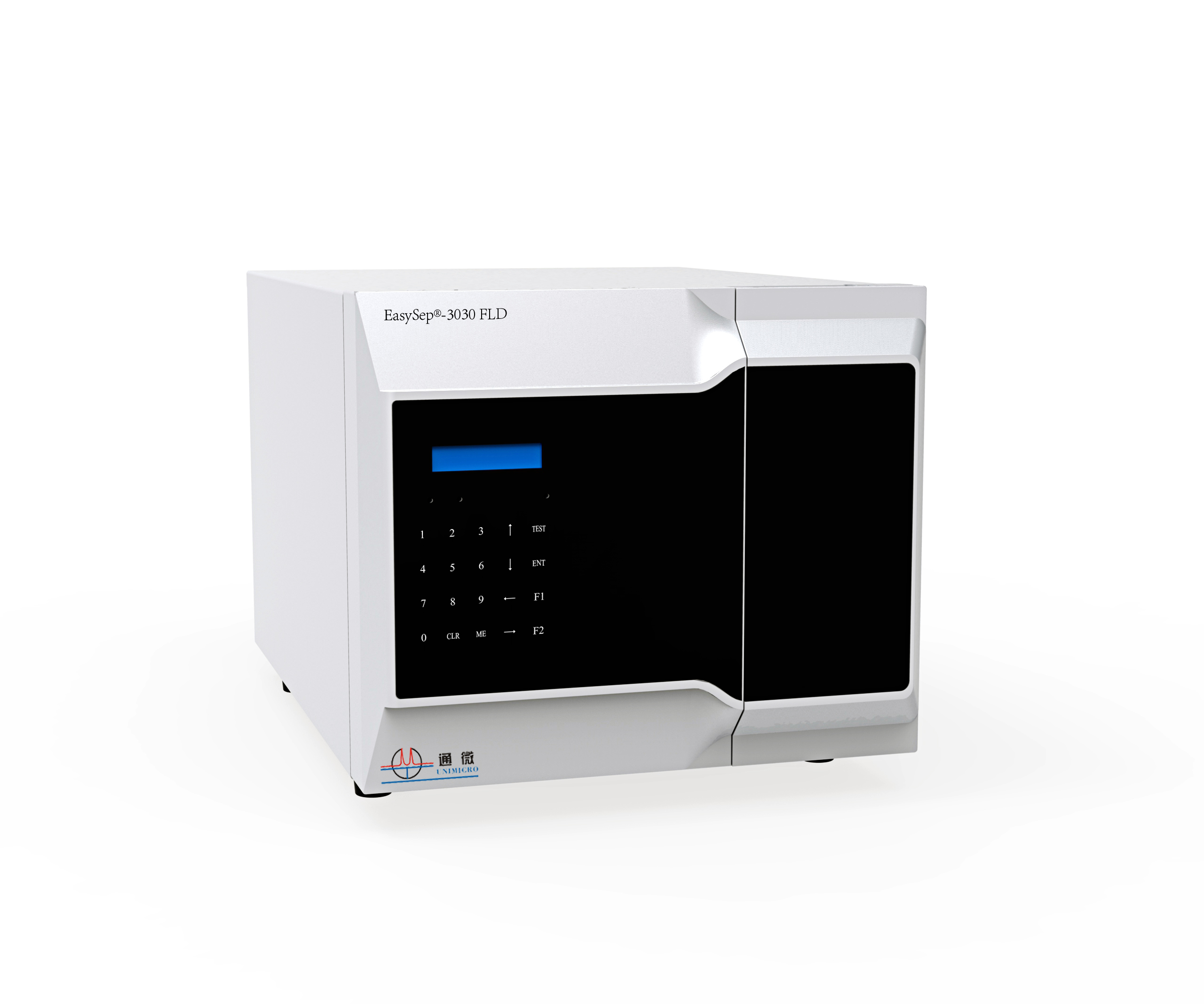

FLD Fluorescence Detector

Innovative optical system design featuring a high-precision deuterium lamp source coupled with a high-sensitivity detector, effectively enhancing both the sensitivity and selectivity of the fluorescence detector.

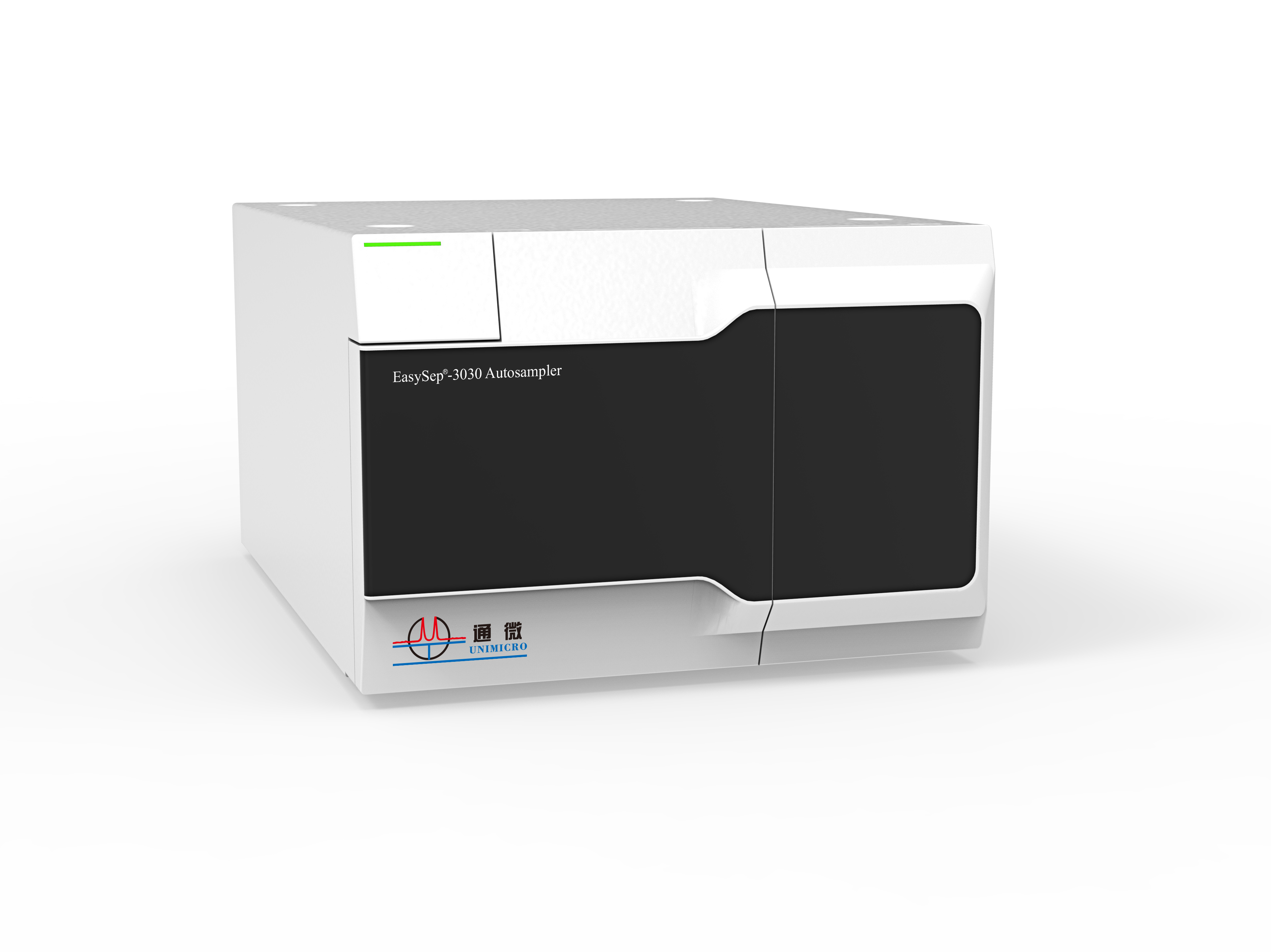

Autosampler

Fully automated control via workstation, ensuring reliable unattended operation.

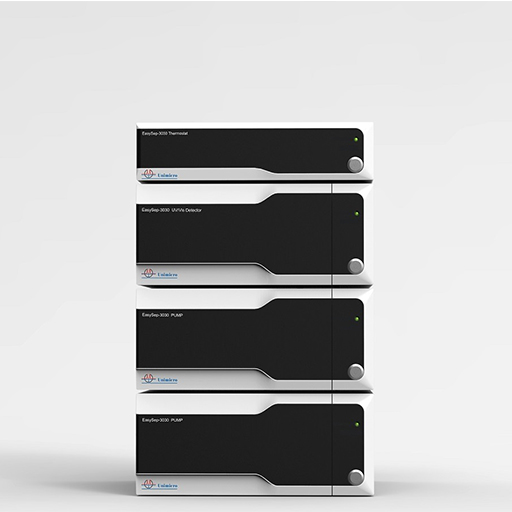

Instrument Category: Conventional HPLC



2. Product Specifications

◆ Data Acquisition Frequency: 20 Hz

◆ Flow Rate Range: 0.001–10.000 mL/min

◆ Pressure Limit: 42 MPa or 68 MPa

◆ Injection Range: 0–100 μL

◆ Sample Capacity: 2 mL (108 positions)

◆ Temperature Control Range: Ambient to 100°C

◆ Wavelength Range: 190–800 nm

3. Application Scope

◆ Pharmaceutical Field: Used for the purification of synthetic drugs and Chinese herbal medicines, as well as qualitative and quantitative analysis of their components; also applied to the determination of drug metabolism in clinical pharmaceutical research.

◆ Food Field: Used for the analysis of nutrients, additives, pollutants and other substances in food, such as sugars, organic acids, vitamins, amino acids, pesticide residues, aflatoxins, etc.

◆ Electrical & Electronic Field: Used for the detection of plasticizers, polycyclic aromatic hydrocarbons (PAHs), phenols, etc.

◆ Chemical Industry Field: Used for the detection of surfactants, dyes, pro-xylane in cosmetics, etc.

◆ Environmental Field: Used for the analysis of environmental pollutants, such as polycyclic aromatic hydrocarbons (PAHs), polychlorinated biphenyls (PCBs), pesticide residues, etc.

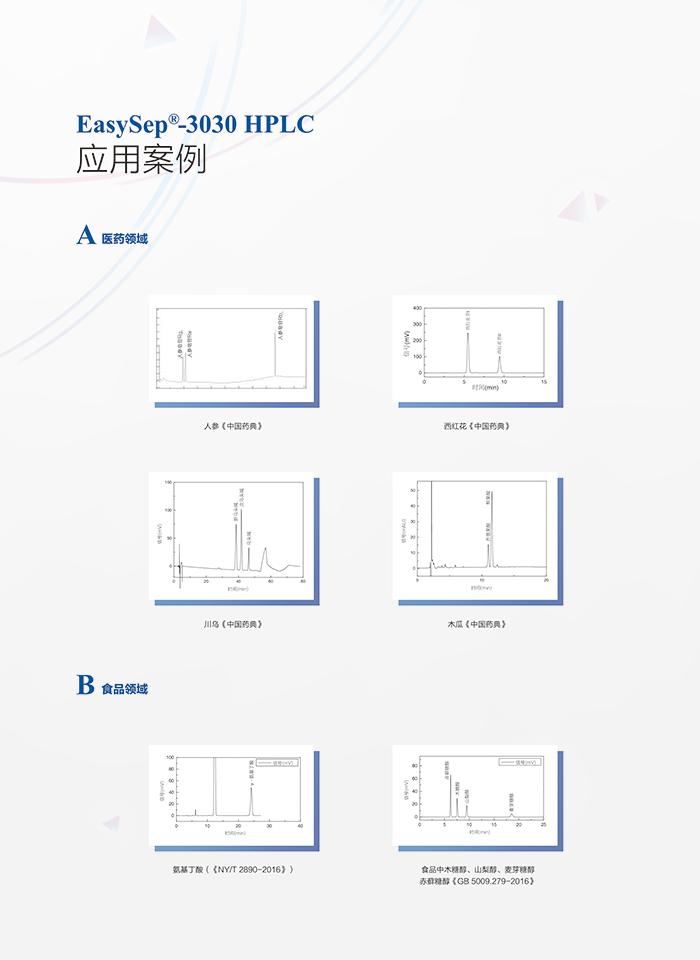

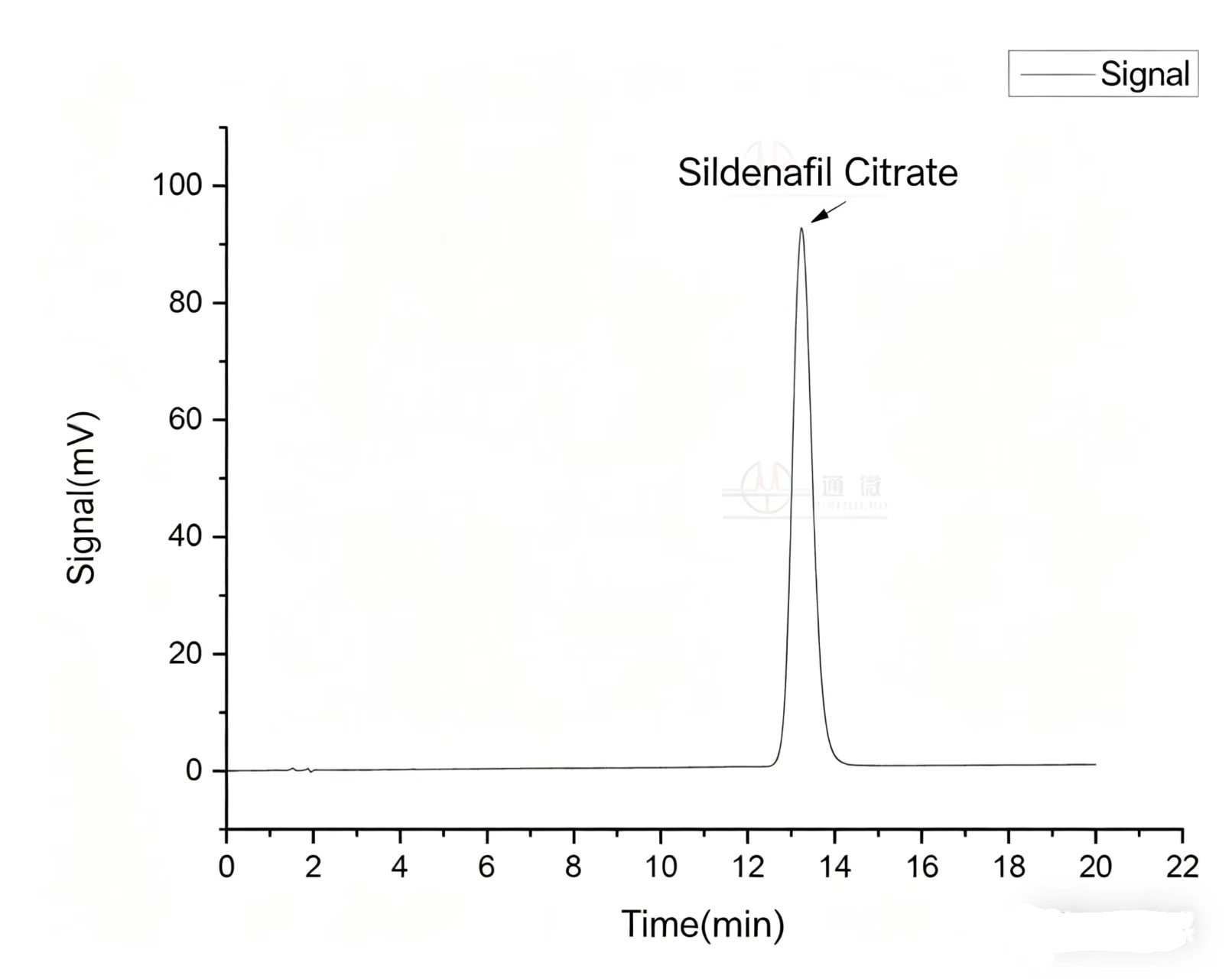

4. Case Study
