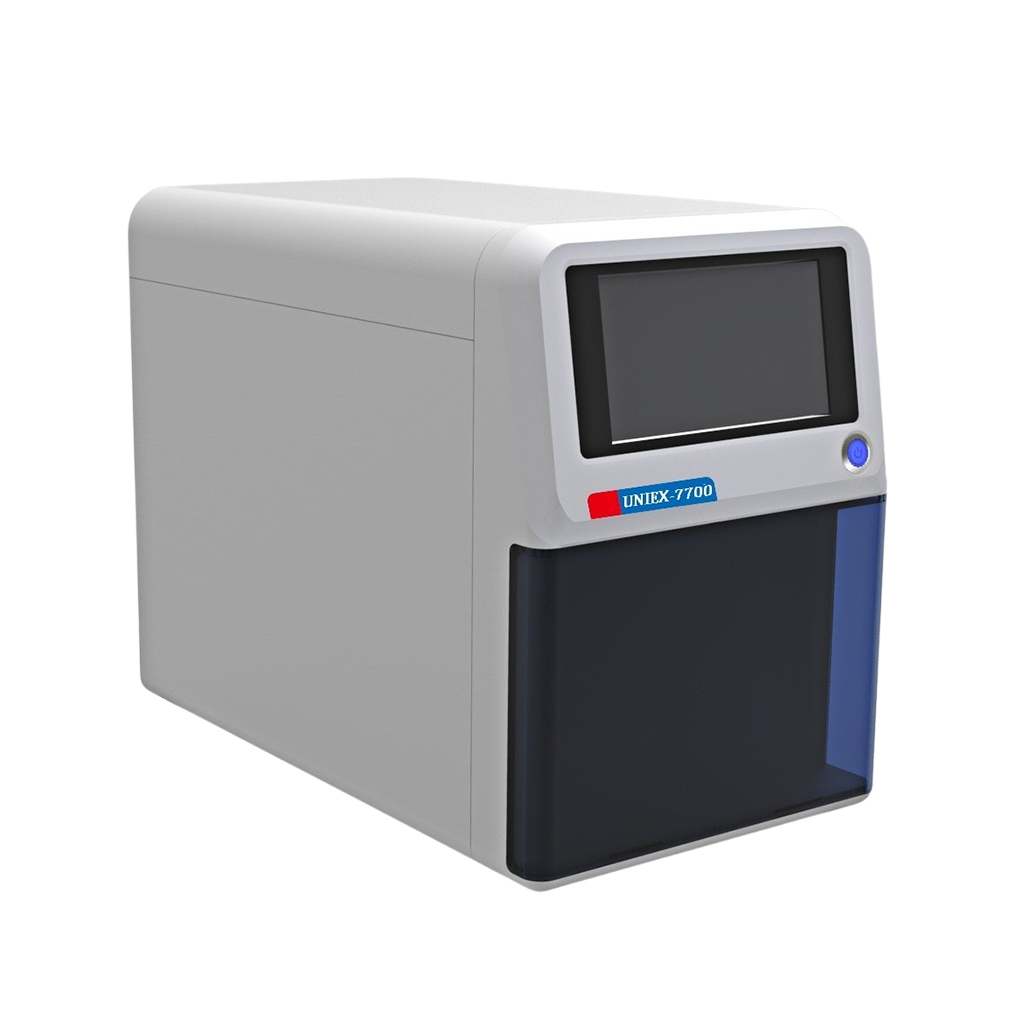

UNIEX 7700 ELSD



Capable of detecting any sample with volatility lower than the mobile phase, regardless of the presence of chromophores. ELSD sensitivity is higher than that of Refractive Index (RI) detectors and is insensitive to temperature fluctuations, providing a stable baseline suitable for coupling with gradient elution liquid chromatography. It has been widely applied in the detection of carbohydrates, lipids, fatty acids, amino acids, pharmaceuticals, and polymers, particularly for the determination of active ingredients without UV absorption in Traditional Chinese Medicine (TCM) and proprietary Chinese medicines.

*
*
* (Our staff will contact you. And all the data is encrypt.)
0/500 words

Features:

√ Higher Sensitivity

  • The high-performance detection system, consisting of a laser and photomultiplier tube (PMT), ensures superior sensitivity.

  • Low-temperature nebulization and evaporation provide high sensitivity for thermally unstable and semi-volatile compounds.

  • Three-level adjustable gain broadens the sensitivity range of detection.

√ Greater Reliability

  • Precision mechanical engineering ensures instrument reliability.

  • The nebulization chamber is equipped with a patented heating module to prevent condensation on the outer wall of the nebulizer, ensuring a stable nebulization environment.

  • The chromatography data system (CDS) features permission management and a built-in database with audit trails, ensuring data security and reliability in compliance with relevant regulations.

√ Higher Intelligence

  • Equipped with a full-color touchscreen and UNIEX-7700 operation software for an enhanced human-machine interaction experience.

  • Features alarm protection for temperature, flow rate, and pressure.

  • Enables seamless full instrument control via software.



Type Low-temperature type
Evaporator Temperature Range Ambient to 130°C
Gain Three-level adjustable
Gas Requirements Nitrogen or Air (1 L/min – 4 L/min)
Liquid Flow Rate Range 10 μL/min – 3 mL/min
Limit of Detection (LOD) ≤ 1 × 10⁻⁷ g/mL
Baseline Noise ≤ 0.02 mV
Baseline Drift ≤ 0.2 mV/30 min
Quantitative Reproducibility (RSD, n=6) ≤ 2.0%







Other details:
  • Transportation:By air if not specified.
